DSC-1/ MSC 27

Product Specification

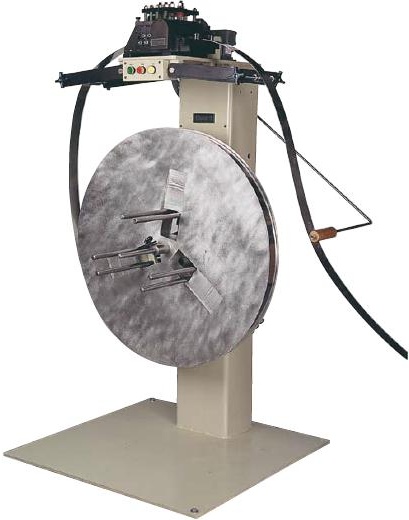

Decoilers

• Maximum Coil Weight: 600 Lbs
• Maximum Coil Width: 6 or Specify
• Maximum Coil Outside Diameter: 36 Or Specify
• Coil Core Diameter: Adjustable 6 – 24
• Brake: Adjustable Tension Type
• Coil Discs: (2) Aluminum 36 Diameter Or Specify

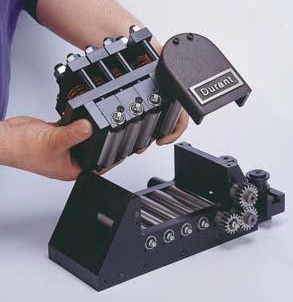

Stock Straightener

• Maximum Material Width: 6
• Material Straightening Capacity: .008-.100 Mild Steel
• Number of Straightening Rolls: 7
• Number of Drive Rolls: 2
• Roll Diameter: 1"
• Motor: 3/4 H.P. 90 VDC
• Black Oxide Finish: Standard Equipment

Product Features

• HeavyDuty Steel Frame Construction
• 1-1/2 Diameter Main Spindle Shaft
• (2) Heavy Duty Main Spindle Bearings
• Variable Speed Dancer Type Material Loop Control
• Heavy DutyGear Reducer
• Entrance and Exit Guide and Material Support Rollers

Product Options

• Variable Speed Antenna Type Loop Control
• A-1 Sonic Type No Touch Loop Control

Product Benefits

• Space Saving Combination Machine
• Easy to move within factory with forklift
• Smooth Payout of your materials
• Heavy Duty, Rugged Frame Construction for long trouble free operation
• Easy Loading of Coils
• Highest Quality Components
• (3) Year Warranty
• Versatile machine that handles most Press, Roll Forming, Wire Forming, Uncoiling and Rewinding applications
