DD-1

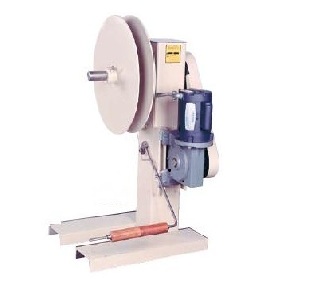

The DD and VS-DMD series Decoilers are designed to uncoil spools of materials. The fixed spindle shaft diameter can be specified by the user for your spool core. All machines are available in unmotorized models with an adjustable tension brake or in variable speed motorized models. Aluminum coil discs are standard equipment in 18”, 24”, 30”, 36” 48”or 60” diameters. Customer to specify.
Maximum Coil Weight: 100 Lbs
Maximum Coil Width: Customer to Specify
(2) Aluminum Coil Discs: Customer to Specify - Diameter 18”, 24”, 30”, 36”, 48” 60”
Main Shaft Diameter: Customer to Specify
Brake: Adjustable Tension Type
Heavy Duty Steel Frame Construction
(2) Aluminum Spool Retaining Discs to Customer Specifications
Main Shaft Diameter to Customer Specifications
(2) Heavy Duty Main Spindle Bearings
Heavy Duty Adjustable Tension Brake
Special Spool Retaining Discs in Aluminum or Steel Plate
Special Main Shaft Diameters
Double Spindle Option
Smooth Payout of your materials on spools
Heavy Duty, Rugged Frame Construction for long trouble free operation
Easy Loading of Spools
Highest Quality Components
(3) Year Warranty
Versatile machine that handles most uncoiling applications on spools
