VS-MDD-4024-M

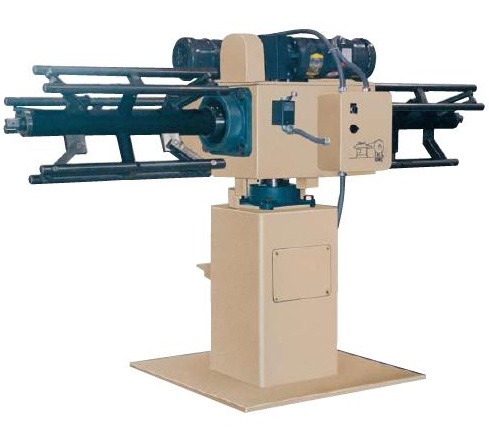

Variable Speed Motorized Double Spindle Decoilers


All Models of Durant Decoilers are available in both Single Spindle and Double Spindle versions. The Double Spindle models allows you to increase Manufacturing Productivity. When one side of the machine is uncoiling material, the operator can load the other side. A foot release pedal keeps the spindle in position. It can be turned 180 degrees when fully loaded with the foot pedal. Variable Speed Dancer Type Material Loop Controllers are standard equipment on all Motorized models. Increase your Productivity! Consider Double Spindle Decoilers with adjustable expanding cores for bulk coils or with fixed solid spindles for materials on spools. Durant manufactures all models in both Non-Motorized “Pull Off” or Variable Speed Motorized versions.

Availability :
3-4 Weeks
Warranty :
(3) Years. See Warranty Details
Price :
Email or Call a Durant Specialist for the Lowest Price?

Product Specification

  • Maximum Coil Weight: 4000 Lbs Each Spindle
  • Maximum Coil Width: 24” or Specify
  • Maximum Coil Outside Diameter: 54”- 60”
  • Coil Core Diameter: Adjustable 15” – 20”
  • Motor:  2 H.P. 230/460 Volt
  • Keeper Arms: (12) Quick Adjust

Product Features

  • Double Rotating Spindles
  • Heavy Duty Steel Frame Construction
  • 4” Diameter Main Spindle Shafts
  •  (2) Heavy Duty Main Spindle Bearings
  • Heavy Duty Gear Reducer
  • Variable Speed Dancer Type Material Loop Control



Product Options

  • Variable Speed Antenna Type Loop Control
  • A-1 Sonic Type No Touch Loop Control
  • Coil Discs in place of Keeper Arms 36”, 48”, 60” Diameter
  • Rewind Option



Product Benefits

  • Increased Productivity with Double Spindle models. Operator loads one spindle while the other spindle uncoils the material
  • Smooth Payout or rewinding of your materials
  • Heavy Duty, Rugged Frame Construction for long trouble free operation
  • Easy Loading of Coils
  • Highest Quality Components
  • (3) Year Warranty
  • Versatile machine that handles most Press, Roll Forming, Wire Forming, Uncoiling or Rewinding applications
