N 3550-42

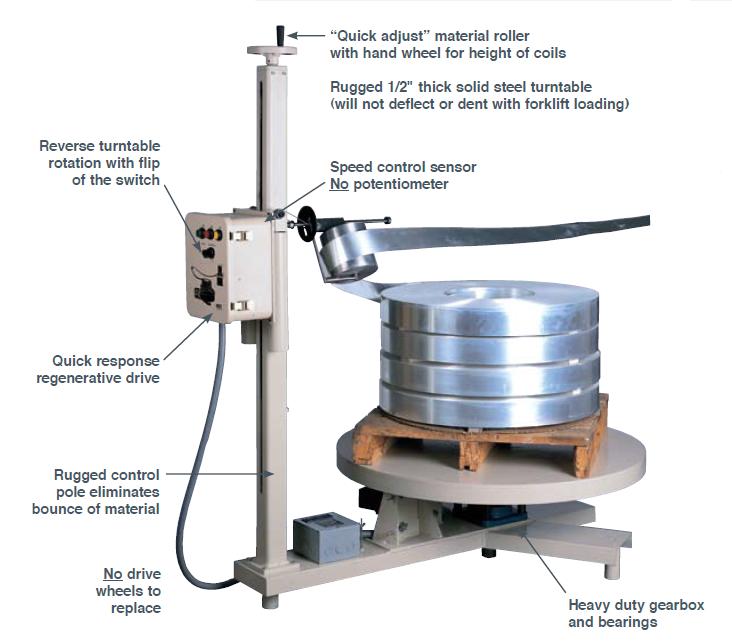

Pallet Type Uncoilers


Durant has the pallet decoiler for every need...thin delicate flat stock or wire, heavy duty wire, and flat coiled material to 24". Whether your pallets weigh 500 lbs. or up to 12,000 lbs., call Durant for the appropriate machine to handle your requirements. What will you, our customer receive? When you purchase a Durant pallet decoiler, you get the highest quality, heavy duty, most advanced pallet decoiler available from any manufacturer. Durant electrical controls are simple and safe to operate with most operating features not matched by competitive models. Durant pallet decoilers have the highest horse power rating in their class. Durant pallet decoilers feature heavy duty gear boxes not matched by any competitor. Durant has more than 75 years of uncoiling experience in both horizontal and vertical decoilers. All Durant products have an unquestioned 3 year guarantee. If you are looking for pallet decoilers, look to Durant "the leader in pallet decoiler technology."

Availability :
1-3 Weeks
Warranty :
(3) Years. See Warranty Details
Price :
Email or Call a Durant Specialist for the Lowest Price?

Product Specification

  • Maximum Coil Weight: 3500 Lbs
  • Maximum Material Width: 6” Standard or Specify other widths to 24”
  • Turntable Diameter: 42” Or Specify other diameters to 72”
  • Turntable RPM: 0-50 RPM
  • Motor: 3/4 H.P. 180VDC
  • Main Support Shaft Diameter: 3”
  • Automatic Material Speed Controller: Standard Equipment
  • Manual Speed Control Over Ride Feature: Standard Equipment
  • Quick Response Regenerative Drive: Standard Equipment
  • Adjustable Acceleration/Deceleration
  • Speed Control Sensor: No Potentiometers
  • Emergency Stop Circuit: Standard
  • Quick Adjust Material Roller for height of coils: Standard



Product Features

  • Heavy Duty Steel Frame Construction
  • Quick Coil Height Adjustment Feature With Hand Wheel
  • Rugged 1/2” Thick Solid Steel Turntable. Will not deflect or dent with forklift loading
  • (2) Heavy Duty Main Spindle Support Bearings
  • Heavy Duty Gear Reducer
  • Quick Response Regenerative Drive
  • Reverse Turntable direction with flip of the switch. No mechanical adjustments or torque systems to install
  • No drive wheels that wear and slip
  • Requires no slack loop. Can be placed within 2 feet of the press depending on the application
  • Easy loading of entire pallets of coil stock
  • Easy to move within factory
  • Automatic material speed controller
  • Manual speed control over ride feature
  • No Dangerous Turntable Pinch Points. (Note: Other manufactures have many casters and drive wheels under the turntable creating dangerous pinch points for operator’s fingers.)
  • No Potentiometers to fail or break



Product Options

  • Faster Turntable speeds to 75RPM
  • Turntable Diameters to 72” O.D.
  • Special material widths to 24”
  • Urethane Drum option
  • Coil Lock Option
  • Rubber Anti –Slip Turntable Mat Option
  • Custom Paint Colors to Customer Specifications
  • Casters for mobility and portability
  • Zero Speed/E Stop  Air Brake system



Product Benefits

  • Increase Worker Productivity
  • Easy Loading of Full Pallets of Coils
  • Smooth Payout and Uncoiling of your material
  • Heavy Duty Steel Frame Construction for Long Trouble Free Operation
  • Highest Quality Components
  • (3) Year Warranty
  • Versatile machine that handles many Uncoiling applications
