VS-MSC-87

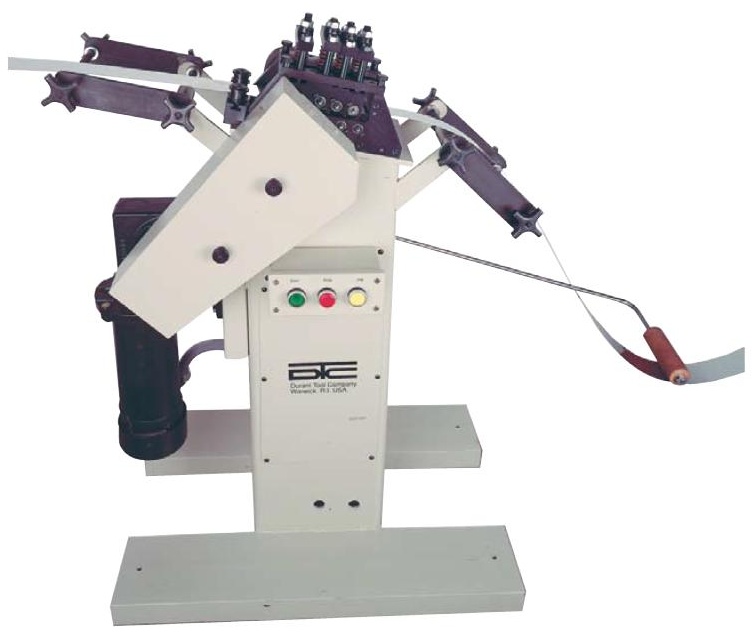

Flat Stock Coil Straighteners Motorized

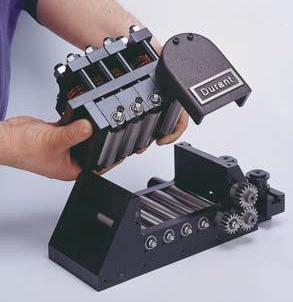

When your material application requires straightening metals up to 18” in width and .008-.100” in thickness, the Durant VS-MSC series sets the standard for the industry. All models include (2) entrance drive rolls and (7) straightening rolls. The rolls are individually adjusted, enabling precise fine tune straightening of your material. All rolls are precision ground and heat treated for long term problem free service.

Availability :
Stock- 3 Weeks
Warranty :
(3) Years. See Warranty Details
Price :
Email or Call a Durant Specialist for the Lowest Price?

Product Specification

  • Maximum Material Width:  18”
  • Material Thickness: .010”-.065” Mild Steel
  • Number Drive Rolls: 2
  • Number Straightening Rolls: 7
  • Roll Diameter: 1-1/4”
  • Entrance and Exit Guide Rolls: Standard Equipment
  • Material Support Rollers: Standard Equipment
  • Variable speed drive with variable speed dancer type loop control 0-100 FPM:  Standard Equipment
  • Motor:  1 H.P. 230/460 Volt

Product Features

  • Rugged steel frame construction
  • Open top feature for ease of cleaning rolls and threading material
  • Inclined straightening head
  • All rolls precision ground and heat treated
  • Each roll individually adjustable for precise fine tune straightening of your material
  • Entrance and exit guide rollers
  • Material support rollers
  • Black oxide machine finish
  • Automatic speed controller
  • Variable speed dancer type loop controller
  • Heavy duty gear reducer



Product Options

  • Roll dial indicators for roll positioning
  • Variable speed antenna type loop controller
  • A-1 Sonic no touch loop controller



Product Benefits

  • Precise fine tune straightening of material
  • (3) Year Warranty
  • Versatile machine to handle many types of materials and material thickness
