VS-DMSC-1

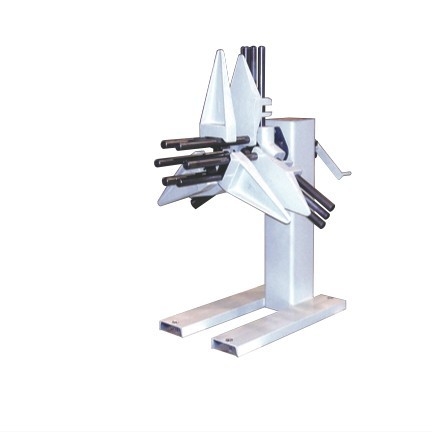

All Durant Decoilers are available in non-motorized and variable speed motorized models. These rugged constructed machines have (6) quick adjust coil keeper arms that are easily located on heavy rods for narrow or wide coils. (2) Heavy Duty Bearings insure long term trouble free operation.
The variable speed motorized models include a variable speed controller and variable speed dancer type loop control as standard equipment.
Maximum Coil Weight: 600 Lbs
Maximum Coil Width: 10” or Specify
Maximum Coil Outside Diameter: 44”
Coil Core Diameter: Adjustable 6” – 24”
Motor: 1/3 H.P. 90 VDC
Keeper Arms: (6) Quick Adjust
Heavy Duty Steel Frame Construction
Rugged Cast: Quick Adjust Keeper Arms
1-1/2” Diameter Main Spindle Shaft
(2) Heavy Duty Main Spindle Bearings
Variable Speed Dancer Type Material Loop Control
Heavy Duty Gear Reducer
Variable Speed Antenna Type Loop Control
A-1 Sonic Type No Touch Loop Control

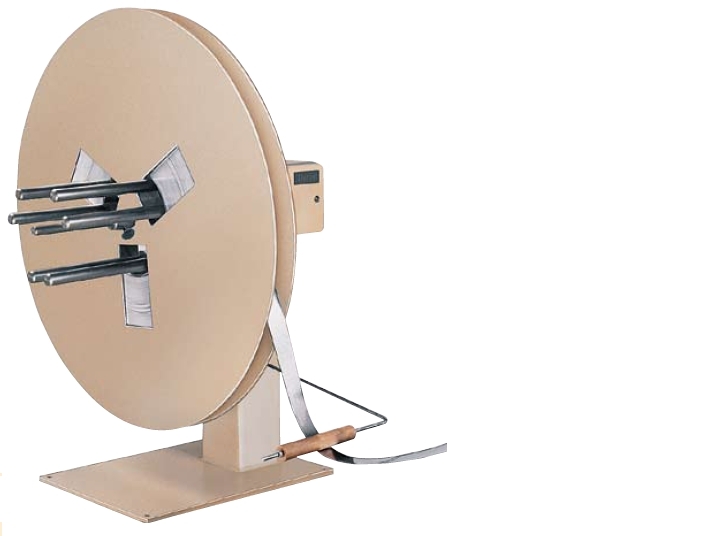

Coil Discs in place of Keeper Arms 36”, 48”, 60” Diameter

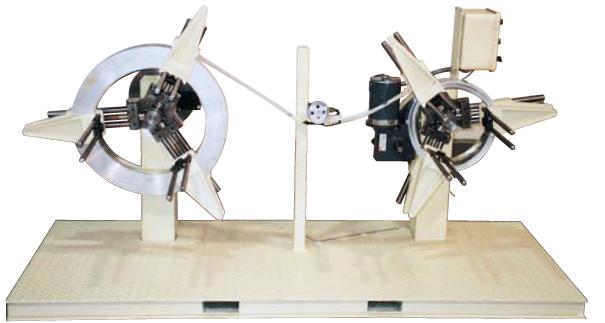

Rewind Option
Double Spindle Option
Electrical Core Expansion
Hydraulic Hold Down Arm for Spring /Expanding Material
Smooth Payout or rewinding of your materials
Heavy Duty, Rugged Frame Construction for long trouble free operation
Easy Loading of Coils
Highest Quality Components
(3) Year Warranty
Versatile machine that handles most Press, Roll Forming, Wire Forming, Uncoiling and rewinding applications
