VSMD-251-M

Variable Speed Motorized Decoiler


All Durant Decoilers are available in non-motorized and variable speed motorized models. These rugged constructed machines have (6) quick adjust coil keeper arms that are easily located on heavy rods for narrow or wide coils. (2) Heavy Duty Bearings insure long term trouble free operation.

The variable speed motorized models include a variable speed controller and variable speed dancer type loop control as standard equipment.

Availability :
3-4 Weeks
Warranty :
(3) Years. See Warranty Details
Price :
Email or Call a Durant Specialist for the Lowest Price?

Product Specification

  • Maximum Coil Weight: 2500 Lbs
  • Maximum Coil Width: 12” or Specify
  • Maximum Coil Outside Diameter: 54”- 60”
  • Coil Core Diameter: Adjustable 15” – 20”
  • Motor: 1-1/2 H.P. 230/460 Volt
  • Keeper Arms: (6) Quick Adjust



Product Features

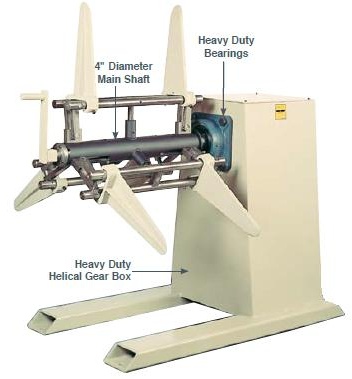

  • Heavy Duty Steel Frame Construction
  • Rugged Cast: Quick Adjust Keeper Arms
  • 4” Diameter Main Spindle Shaft
  • (2) Heavy Duty Main Spindle Bearings
  • Variable Speed Dancer Type Material Loop Control
  • Heavy Duty Gear Reducer



Product Options

  • Variable Speed Antenna Type Loop Control
  • A-1 Sonic Type No Touch Loop Control
  • Coil Discs in place of Keeper Arms 36”, 48”, 60” Diameter
  • Rewind Option
  • Double Spindle Option
  • Hydraulic Core Expansion
  • Hydraulic Hold Down Arm for Spring /Expanding Material



Product Benefits

  • Smooth Payout or rewinding of your materials
  • Heavy Duty, Rugged Frame Construction for long trouble free operation
  • Easy Loading of Coils
  • Highest Quality Components
  • (3) Year Warranty
  • Versatile machine that handles most Press, Roll Forming, Wire Forming, Uncoiling and Rewinding applications
