DDSC-0

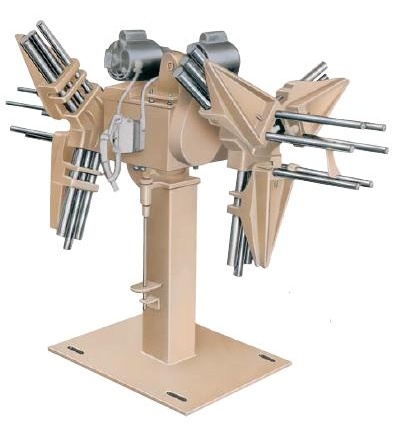

Unmotorized Double Spindle Decoilers


All models of Durant Decoilers are available in both single spindle and double spindle versions. The double spindle models allows you to increase manufacturing productivity. When one side of the machine is uncoiling material, the operator can load the other side. A foot release pedal keeps the spindle in position. It can be turned 180 degrees when fully loaded with the foot pedal. Heavy Duty adjustable tension brakes are standard equipment on all non motorized models. Increase your Productivity! Consider double spindle Decoilers with adjustable expanding cores for bulk coils or with fixed solid spindles for material on spools. Durant manufactures all models in both non motorized “Pull Off” or variable speed motorized versions.

Availability :
2-3 Weeks
Warranty :
(3) Years. See Warranty Details
Price :
Email or Call a Durant Specialist for the Lowest Price?

Product Specification

  • Maximum Coil Weight: 400 Lbs each Spindle
  • Maximum Coil Width: 8” or Specify
  • Maximum Coil Outside Diameter: 44”
  • Coil Core Diameter: Adjustable 6” – 24”
  • Brake: Adjustable Tension Type
  • Keeper Arms: (12) Quick Adjust



Product Features

  • Double Rotating Spindles
  • Heavy Duty Steel Frame Construction
  • 1-1/2” Diameter Main Spindle Shafts
  • (2) Heavy Duty Main Spindle Bearings
  • Heavy Duty Adjustable Tension Brake



Product Options

  • Coil Discs in place of Keeper Arms 36”, 48”, 60” Diameter

Product Benefits

  • Increased productivity with double spindle models. Operator loads one spindle while the other spindle uncoils the material
  • Smooth Payout of your material
  • Heavy Duty, Rugged Frame Construction for long trouble free operation
  • Easy Loading of Coils
  • Highest Quality Components
  • (3) Year Warranty
  • Versatile machine that handles most Press, Roll Forming, Wire Forming, and Uncoiling applications
