XWS-007

Quick Adjust Wire Straighteners

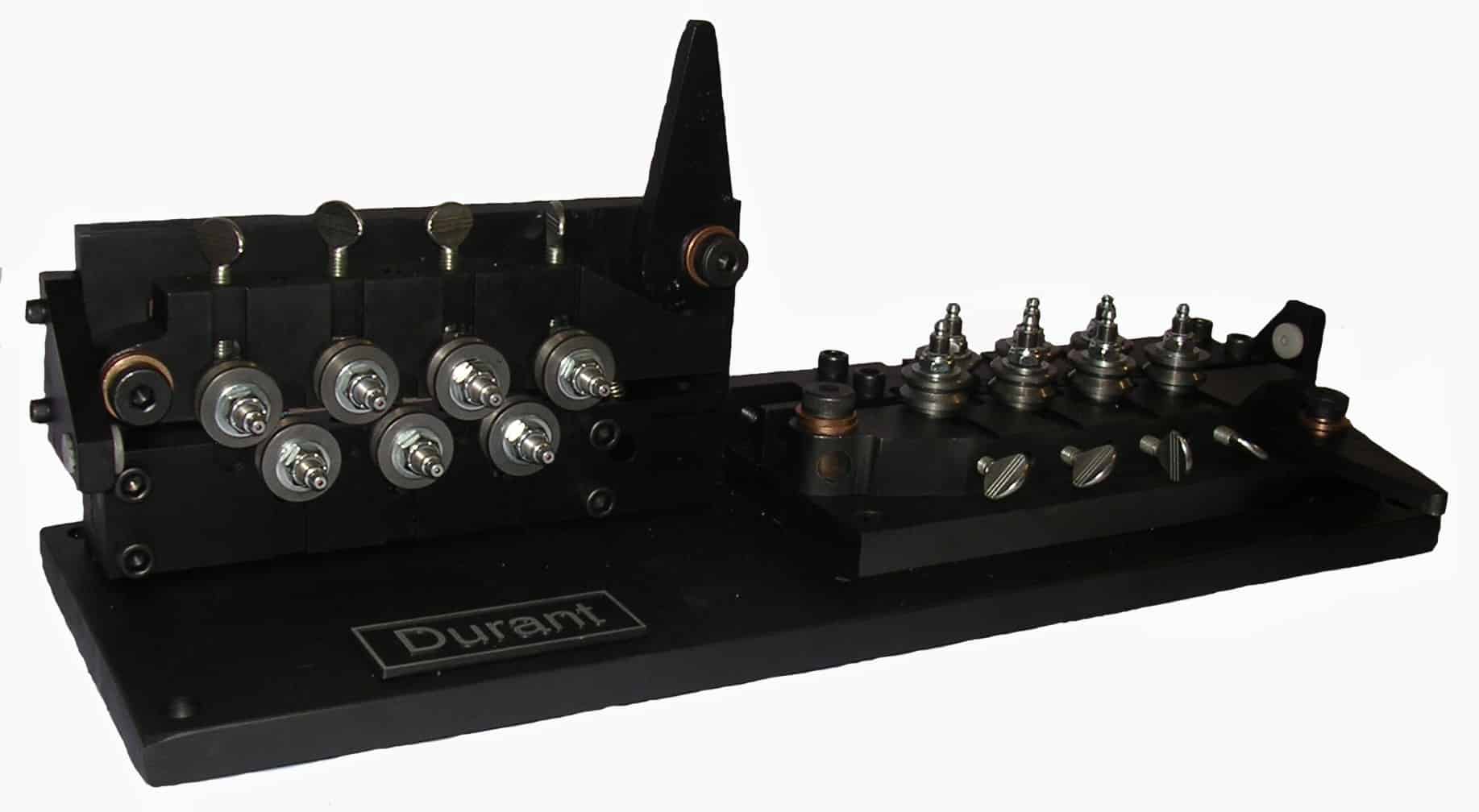

Durant Wire Straighteners are used for straightening round or flat wire as well as wire with irregular cross sections. Each unit consists of two sets of 5 or 7 "V" grooved rolls set at right angles as illustrated to remove the material curvature on both planes. The rolls on Durant Wire Straighteners can be grooved to the exact diameter of the wire to be straightened or can be "V"-grooved (standard) for handling a wide range of sizes.

Availability :

2-4 Weeks

Warranty :

(3) Years. See Warranty Details

Price :

Email or Call a Durant Specialist for the Lowest Price?

Send Enquiry

Product Specification

Wire Diameter Capacity: Up to .062”
Number of Straightening Rolls: 14
Diameter of Rolls: 3/4”
Quick opening and closing cam release feature insures a fast set-up and change over from one coil to the next

Product Features

All rolls are adjustable enabling you to fine tune the straightening of your material
All rolls are individually adjusted by means of a thumb screw
Each roll is set in ball bearings and mounted on a hardened spindle with a grease fitting for proper lubrication and long life
All machines have a mounting pad for quick and easy mounting to your machine
Precision Solid Steel CNC Machined Construction
